MoTak KT-MIF-500/KT-IB-470 521 lb Full Cube Ice Machine w/ Bin – 470 lb Storage, Air Cooled, 115v

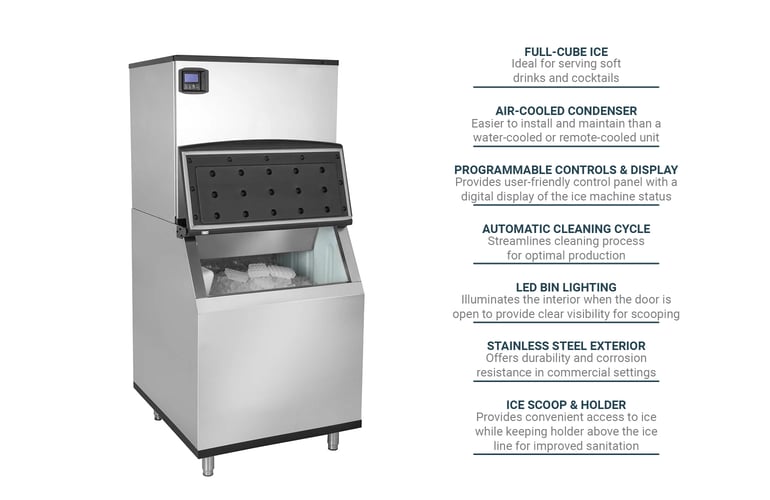

Ideal for medium-volume ice production needs, the MoTak KT-MIF-500/KT-IB-470 ice machine and bin can make 521 pounds in 24 hours in ideal conditions. Because it makes full-cube ice, this model can be used for standard drink service in casual restaurants and cocktail service in bars. This unit’s condenser is self-contained and air cooled, meaning it uses fans to blow cold air over the components. Unlike water-cooled and remote-cooled ice machines, this model doesn’t require additional water lines, refrigerant lines, or connections for smooth installation. For convenience in kitchens, the ice maker has a digital control panel with a digital status screen, automatic cleaning, and bin overload protection. If the head needs servicing, the front panel is hinged for component access.

Because this MoTak KT-MIF-500/KT-IB-470 full-cube ice maker with bin includes the production and storage units, it’s a complete model with 470 pounds of storage space. The bin has a sloped front with a top-hinged black plastic door, and when the door is opened, an LED light shines in the cabinet for clear visibility when scooping. Designed for operator convenience, an ice scoop and scoop holder are included; these pieces mount above the ice line so hands don’t have to come into contact with ice. The bin interior is polyethylene lined for corrosion resistance and cleanability, while its foam insulation retains cold air to slow ice melting. The bin and ice machine head exterior are stainless steel?a rust-resistant material providing durability in commercial settings. Overall, this assembled unit measures 30 inches wide by 34 inches deep by 62²/₅ inches tall.

Ice Machine Head Details

• 521-lb. maximum 24-hour production capacity
• Full-cube ice
• Air cooled
• Self-contained condensing unit
• R-404A refrigerant
• Programmable digital controls and display
• Automatic cleaning
• Bin overflow prevention function
• Hinged front panel
• Black trim accents stainless steel exterior

Ice Bin Details

• 470-lb. capacity
• Sloped front with top-hinged door access
• Black plastic door
• Interior polyethylene liner
• Interior LED lights
• Integrated polyurethane foam insulation
• Ice scooper and holder can be mounted above ice line
• Stainless steel exterior
• Adjustable 6-in. legs
• ³/₄-in. drain hookup

Dimensions & Utilities

• Ice machine head: 30 in. W x 24³/₅ in. D x 21 in. H
• Ice bin: 30 in. W x 34 in. D x 41²/₅ in. H
• Overall: 30 in. W x 34 in. D x 62²/₅ in. H
• 7 A (making), 9.3 A (harvesting)
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

KT-MIF-500 Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, digital, approximately 521 lb. production/24 hours, slab cube ice type, stainless steel with black trim, R404a refrigerant, cULus Classified, CE

KT-IB-470 Ice Storage Bin, 470 lbs. ice storage capacity, for top-mounted ice maker, sloped front, top hinged access door, interior LED lighting, polyurethane foam insulation, black plastic lid, stainless steel exterior, 6″ legs
